Product Description

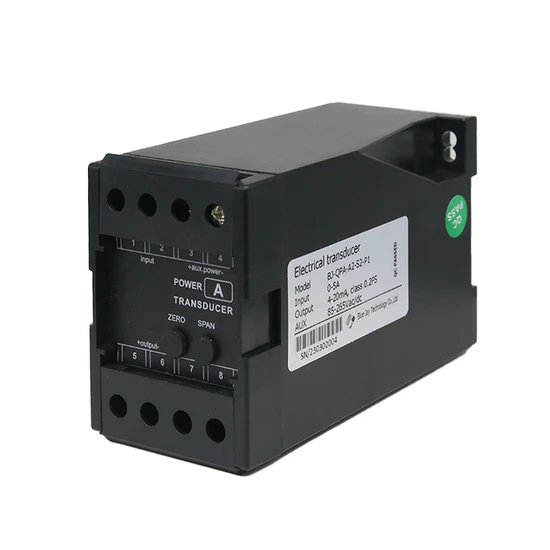

The current transducer RS485 converts an AC / DC voltage or current input into a load-independent output signal. This three-phase current transducer has excellent temperature characteristics and good working stability. The output signal is based on the root mean square(RMS) measurement of the input signal and hence the transducer can be used with distorted waveforms. The unit conforms to IEC 60688. In addition, the voltage transducer rs485 meets the insulation requirements of IEC 60255-5, clauses 5, 6, and 8 as well as the high-frequency disturbance test of IEC 60255-22 for Class III test voltage. Compared with the past transducers, the QPV AC power transducer, made of new technologies and materials, has been greatly improved in circuit, process, structure, etc., making its measurement accuracy higher and work more stable.

Feature

1. Have microcontroller technology as the core, using the latest algorithms, to achieve precise measurement. 2. The current transducer transmitter converts an AC input into a load-independent output signal. 3. The three-phase voltage transducer has excellent temperature characteristics and good working stability. 4. The output signal is based on the root mean square(rms) measurement of the input signal and hence the transducer can be used with distorted waveforms. 5. The unit conforms to IEC 60688. In addition, the 3-phase voltage transmitter meets the insulation requirements of IEC 60255-5, clauses 5, 6, and 8 as well as the high-frequency disturbance test of IEC 60255-22 for Class III test voltage.

Inputs: System current 1A, 5A, 10A, 30A Absorbed power 0.3VA Frequency range 50Hz, 60HzOutput: Standard nominal outputs 4~20mA, 0-5V, (others on request) 0-20mA, 5-10V 0-10V Ripple <0.5% peak to peak Load Resistance Current output: 0<1kΩ; Voltage output: Lr>5KΩAccuracy: Class 0.5 to IEC 60688 0.5%of nominal output for specified range Accurate range 0 - 120% I Frequency influence <0.02% per Hz Load influence <0.25% of full span for specific load range Auxiliary Supply: 48V, 110V, 230/240V AC 20%, 1.5VA 24V, 48V, 110V DC 20% 2W Isolation: Galvanic isolation between input, output circuits and auxiliary supply Test voltage 2KV RMS 50Hz for 1 minute impulse 4KV 1.2/50µsec waveformTemperature: Operating -10~55C Storage -40~70C, 20 ~ 93%RH ; Noncondensing
